PURSUIT
S 328 Sport
Starting at $454,955.00 dlls
STANDARD SPECIFICATIONS:
• L.O.A.: 34' 6" (10.52 m)
• Beam: 10' 10" (3.30 m)
• Hull Draft
- (motors up): 1' 11" (0.58 m)
- (motors down): 2' 9" (0.84 m)
• *Clearance w/Hardtop
- (from waterline): 8' 2" (2.49m)
• Approx. Dry Weight
- (twin F300 engines): 12,160 lbs. (5,516 kg)
• **Fuel Capacity: 300 U.S. gallons (1,136 L)
• Diesel Generator Tank: 16 U.S. gallons (61 L)
• Fresh water Capacity: 30 U.S. gallons (114 L)
• Holding Tank Capacity: 10 U.S. gallons (38 L)
• Max. Horsepower: 600 hp (447 kw)
• Deadrise: 20°
*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%
Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.
GALLERY

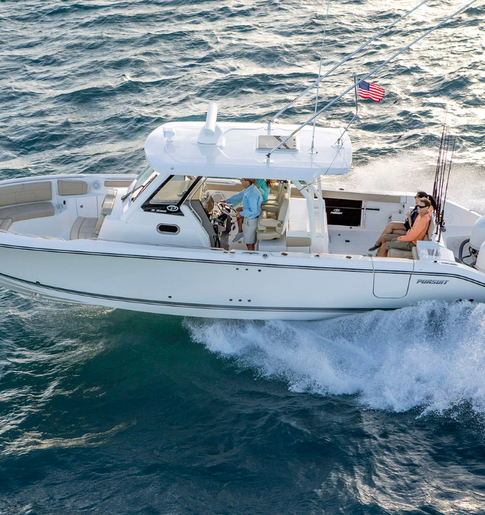

PURSUIT S 328
The Pursuit S 328 broadens the range of the Pursuit’s popular Sport Boat Series.
The athletic 32 features an oversized fiberglass integrated hardtop and windshield system, updated classic sheerline, through-stem anchor system and integrated transom extensions.
The exterior styling is complimented by a forward wrap-around lounge at the bow, just opposite of the forward facing seating in the console.
Below, a two-person berth converts to an aft-facing seat with large open storage areas port and starboard. A head and sink with vanity could let you overnight and freshen up for a dinner shore side. The aft-facing cockpit accommodates serious fishing and with the fold away fore and aft seats, quickly converts to a social area at the dock.
STANDARDS
HULL FEATURES
-
Pursuit® Protection Plan:
5-year hull/deck structural warranty
5-year blister-free warranty
2-year limited warranty -
Pursuit® Fresh White Gelcoat
-
Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
-
5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
-
Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
-
Foam Filled Structural Grid
-
Bronze Thru Hull Fittings Below Water Line
-
Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
-
Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
-
Bronze Garboard Drain
-
Trim Tabs, Lenco Electric with Auto-Retract
-
Bow Eye, 5/8" 316L Stainless Steel
-
Integrated Transom Platform Extensions Outboard of Engines
-
Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform
-
Anchor System, Integrally Molded Thru-Stem
-
Horn, Electric, with Oval Stainless Steel Cover
-
Bow Thruster, 3.0 HP (2.2 kw) with Group 31 AGM Battery, Switch and Fuse
-
Dedicated Transducer Location
-
Forward Hull Compartmentation with One (1) 900 GPH Bilge Pump with Integrated Float Switch
DECK FEATURES
-
Hull and Deck Joint Mechanically Fastened
-
Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
-
Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
-
Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder, 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle and 200' Rode (1/2" 8 Plait including 20' of ¼" G4 Chain)
-
Cleats, 316 Stainless Steel, 10" Pop Up (2) Stern, (2) Spring and (2) Bow
-
Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
-
Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
-
Self-Draining Cockpit with Bronze Ball Valve at Hull Side
-
Bow Grab Rails, 316L Stainless Steel (Port and Starboard)
-
Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)
-
Molded Non-Skid Steps in Splashwell for Athwartship Access
-
Navigation Lights, LED, 2 Mile
COCKPIT FEATURES
-
Molded FRP Hull Side Dive Door with Boarding Ladder and Hideaway Handrail
-
Port and Starboard Forward End Tables with Two (2) Drink Holders, 12V and USB Outlet, Forward Stereo Remote and Storage Below
-
Drink Holders Located in Gunwale, Two (2)
-
Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
-
60/40 Helm Seating Configuration with Foldable Armrests, Fore, Aft and Vertical Adjustment on Captain’s Chair and Fold Out Footrests
-
Molded Entertainment Center with Sink, Fresh Water Faucet, Insulated FRP Cooler with Corian®Lid, Drink Holders(2), Cutting Board, 110V GFI Protected Outlet, Hinged Fiberglass Lids and Dedicated Storage Below
-
Cockpit Tackle Storage
-
12V Main Distribution Panel
-
Pursuit Cockpit JL Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium Speakers (7 Total, 4 in Hardtop, 2 in Bow, and Subwoofer), Amplifier and Zonal Remotes (2) and Ext Antenna
-
Folding Aft Facing Seat with Adjusting Backrest
-
Folding Transom Seat with Adjusting Backrest
-
Custom Fiberglass Cockpit Tables (2) with Dedicated Storage
-
Cockpit Machinery Access Hatch
-
Bridge Machinery Access Hatch
-
Fresh Water Wash with Chrome over Brass Pull out Sprayer and Quick Fittings
-
Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
-
LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
-
Mid Level LED Accent Lights
-
Forward Facing Seat on Front of Console with Armrests
-
Molded Forward Bow Seating with Insulated Storage Below, Electric Hinged Forward Facing Backrests for Port and Starboard Seats
-
Bow Tonneau Cover, Sunbrella®
-
Helm and Companion Seat Cover, Sunbrella®
FISH FEATURES
-
Rod Holders (4), Stainless Steel, in Gunwale
-
Lighted Oceana Blue 24 Gallon Recirculating Livewell with Fiberglass Lid and Acrylic Window
-
Under Gunwale Rod Storage (Starboard)
-
Fish Boxes, Insulated and Diaphragm Pumps with Overboard Discharge (Port and Starboard)
-
Vertical Rod Holders (5), Stainless Steel, in Transom
-
Rod Storage Under Hardtop (Port and Starboard)
HARDTOP & WINDSHIELD FEATURES
-
Molded Fiberglass Full Beam Hardtop
-
Powder Coated Aft Structural Hardtop Supports
-
Custom Windshield System with Tempered Glass and Electrically Actuated Center Vent
-
Pantographic Windshield Wiper with Washer
-
Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings and USA Flag
-
Four (4) Tri Color LED Lights
-
Indirect Lighting Over Dash
-
Fore and Aft Facing Spreader Lights
-
316L Stainless Steel Underside Grab Rails
-
Integrated Stereo Speakers (4)
-
24"x24" Hardtop Acrylic Access/Ventilation Hatch
-
Molded Overhead Electronic Mounting Surface
-
Fiberglass Hardtop with Dedicated Radar, Antenna and Outrigger Locations
-
Horn, Trumpet
HELM
-
Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Footrest/Platform, and Safety Lanyard
-
316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
-
12V Panel with Illuminated Carling® Rocker Switches
-
Compass
-
Trim Tab Control Panel and Indicator
-
Waterproof Stereo Remote with Full Function Display
-
Two 12V Outlet (2) and Dual USB Charger
-
316L Stainless Steel Helm Drink Holders (2)
-
Bow Thruster Joystick Control
-
Helm Fire Extinguisher
-
Dash/Instrument Cover
ELECTRONICS
-
Garmin® Package: Dual GPSMAP 8616 [1 XSV], Airmar B175M 1KW CHIRP Transducer, NMEA 2000 Starter kit, Pursuit Custom Dash Panel, Yamaha Gateway w/cable, VHF Antenna, Garmin® 315 VHF Radio
CONSOLE & HEAD
-
Molded Acrylic Access Door with Gasket and 316L Stainless Steel Locking Latch
-
Cabin Entry Steps with Handrail and Wood Treads
-
Molded Cabin Deck Liner
-
Vacuum Flush Marine Head with 10 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
-
Fiberglass Toilet Seat Cover
-
Designer Sink with Corian® Countertop, Fresh Water Faucet and Vanity Mirror
-
Dedicated Storage for Four (4) Rods, SCUBA Tanks, and Safety Gear
-
Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)
-
Convertible Berthing Accommodations/Seating with Cushions
-
Custom Solid Wood Tongue and Groove Floor Accents
-
120V Main Distribution Panel Cabinet
-
316L Stainless Steel Opening Port Lights (2) with Screens
-
One 12V Outlet (1) and Dual USB Charger
-
One 120V Outlet (1) with GFI Protection
-
Fire Extinguisher
-
CO Monitor
ELECTRICAL SYSTEMS
-
UL® Rated Fully Tinned, Color Coded Copper Wire
-
Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
-
Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection
-
Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
-
Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
-
Four Battery System: Port Engine (1), Starboard Engine (1), House (1) (AGM), and Bow Thruster(1) (AGM)
-
Single 120V 30 Amp 60 Cycle Dockside Power Connection
-
One 120V 30 Amp 50’ Dockside Power Cord
-
One (1) 40 Amp Battery Charger
-
One Grounding Bus Bar
-
Electronics Fuse Block
-
Five 12V Outlets (3) and Four Dual USB Chargers (3)
MECHANICAL SPACE
-
Molded Interior White Gel Coat
-
Molded Hatch with Gasket and Stainless Steel Gas Spring
-
Molded Bilge Sump Area
-
One Low Profile 900 GPH Bilge Pump with Integrated Float Switch, One 1500 GPH Bilge Pump with Electronic Switch, One 1500 GPH Bilge Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
-
Fresh Water Pump with Filter
-
Raw Water Pump with Sea Strainer, Seacock and Thru Hull Fitting
-
Dedicated Fish Box Diaphragm Evacuation Pumps
-
Teleflex Hydraulic Power Steering Pump
FUEL SYSTEM
-
EPA Compliant Lined 150 Gallon (Port and Stbd) Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates
-
Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
-
Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs
WATER SYSTEM
-
30 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
-
Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
-
Pressure Sensing/Variable Speed Pump
-
Fresh Water Distribution Manifold with Dedicated Valves
-
Cockpit Shower
COLOR OPTIONS
Mix and match the right color combination for your new S 328
OPTIONS
BOAT WITH ENGINES
Twin Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), Multifunction Display Interface.
Yamaha® Joystick Control with Full Maneuverability (Set Point™ and Autopilot).
COLOR SELECTIONS
Hull Color
- Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White
- Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue)
Underside Hardtop Color
- Carbon, Neptune Gray, Flag Blue, Gulf Stream Blue
Boot Stripe Color
- Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray
Helm color
- Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White
Upholstery Color
Sea Salt (Standard), White/Gray
MECHANICAL SYSTEMS
-
120V/60 cycle 5.0kw Fischer Panda® Diesel Generator with 16 Gallon Fuel Tank
-
110V / 60Hz Cabin Air Conditioning with Reverse Cycle Heat, 6,000 BTU
-
110V / 60Hz Cockpit Grill
-
Spotlight (ACR RCL-100 LED) with Remote Control at Helm (Cannot be Ordered with FLIR Package)
-
Underwater Lights (3) All Color Sea Blaze Quattro Spectrum
-
Cockpit Refrigerator, 12V Insulated with Temperature Control (Replaces Tackle Storage)
-
Bow Tow
COMFORT & CONVENIENCE
-
Bow Sunpad with Filler Cushion, with Dedicated Storage
-
Ski Tow, Transom Mount, Removable
-
Premium Stereo Upgrade: M6 Sport Speakers and Subwoofer, Custom Tuned 8 Channel DSP Amp, Sirius Receiver, Includes 3 Months Subscription
SPORT FISHING
-
Hardtop Mounted Rod Holders (6)
-
Outriggers with 18' Black Telescoping Poles and Premium Rigging Kit
-
Outriggers - Upgrade to 20' Carbon Fiber Poles (Need to Order Outriggers)
-
Bow Rod Holders (4)
WEATHER GROUP
-
Custom Hardtop Integrated SS Electric Retractable Sunshade with One Touch Operation
-
Aft Cockpit Mediterranean Sunshade, Stowable
-
Bow Mediterranean Sunshade, Stowable
-
Sunbrella® Canvas color - Black, Tweed, Cadet Gray, or Navy
-
Side Curtains (6 Piece) with 60 mil Strataglass (Attaches to Gunwale)
-
Side Curtains Upgrade (White) (Attaches to Gunwale)
-
Aft Curtain, Sunbrella®
-
Aft Curtain, Stamoid® - White
-
Bow Tonneau Cover, Stamoid® - White
-
Engine Covers, Sunbrella® (pair)
ELECTRONICS
-
Garmin® GMR™ Fantom 54 Open Array Radar
-
FLIR Night Vision Package with Image Stabilization (Cannot be Ordered with Spotlight Option)
-
Garmin® GC-14 Rear Facing Camera
-
SiriusXM® Weather Receiver (Subscription Required)
INTERIOR FABRIC
-
Driftwood (Standard)
-
Sand Dollar
