PURSUIT

S 288 Sport

Starting at $334,325.00 dlls

STANDARD SPECIFICATIONS:

• L.O.A.: 30' 0" (9.14 m)

• Beam: 9' 8" (2.95 m)

• Hull Draft

- (motors up): 2' 0" (0.61 m)

- (motors down): 3' 0" (0.91 m)

• *Clearance w/Hardtop

- (from waterline): 7' 9" (2.36 m)
• Approx. Dry Weight

- (twin F300 engines): 8,220 lbs. (3,729 kg)

• **Fuel Capacity: 230 U.S. gallons (871 L)

• Fresh water Capacity: 26 U.S. gallons (98 L)Holding

• Tank Capacity: 9 U.S. gallons (34 L)

• Max. Horsepower: 600 hp (447 kw)

• Deadrise: 24°

Screenshot 2023-11-19 at 8.19.36 p.m..png

*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.

GALLERY
Ocean

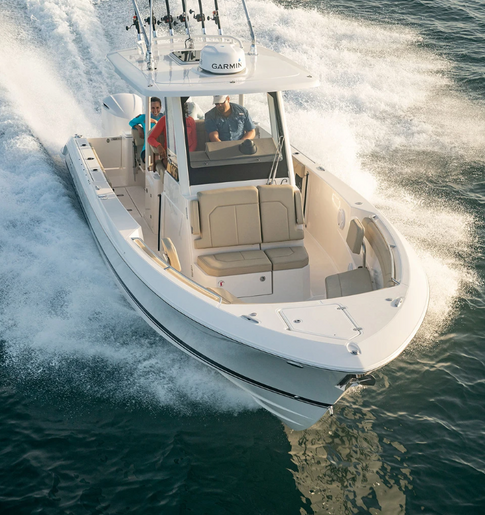

PURSUIT S 288

The Sport Boat family provides stunning exterior profile with industry leading features.

​

Years of intense planning go into the release of new Pursuit models, and the S 288 is no exception. With its compact design, we’ve honed in on the essentials – but we’ll never lose our attention to detail. We’re ensuring it has everything you need and nothing you don’t.

STANDARDS

HULL FEATURES

  • Pursuit® Protection Plan:
    5-year Hull/Deck Structural Warranty
    5-year Blister-free Warranty
    2-year Limited Warranty

  • Pursuit® Fresh White Gelcoat

  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics

  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid

  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System

  • Foam Filled Structural Grid

  • Bronze Thru Hull Fittings Below Water Line

  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line

  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line

  • Bronze Garboard Drain

  • Trim Tabs, Lenco Electric with Auto-Retract

  • Bow Eye, 5/8" 316L Stainless Steel

  • Stern Eyes (2), 5/8" 316L Stainless Steel

  • Integrated Transom Platform Extensions Outboard of Engines

  • Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform

  • Anchor System, Integrally Molded Thru-Stem

  • Horn, Electric, with Oval Stainless Steel Cover

  • Dedicated Transducer Location

​

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened

  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert

  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area

  • Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm, Remote at Anchor Locker and Raw Water Washdown

  • 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder, 14lb Stainless Steel Plow Style Anchor, Self-Righting Shackle and 200' Rode (1/2" 8 Plait including 20' of ¼" G4 Chain)

  • LED Anchor Locker Light

  • Cleats, 316 Stainless Steel, 8" Pop Up (2) Stern, (2) Spring and (2) Bow

  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks

  • Molded Transom Walkthrough with Hinged Transom Door (with integrate One Way High Water Door), 316L Stainless Steel Latch and Magnetic Catch

  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side

  • Bow Grab Rails, 316L Stainless Steel (Port and Starboard)

  • Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)

  • Molded Non-Skid Transom Bridge for Athwartship Access

  • Navigation Lights, LED, 2 Mile

​

COCKPIT FEATURES

  • Molded FRP Hull Side Boarding Door

  • Drink Holders (2), Located in Gunwale

  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing

  • Helm Seating with Teak Accents, Split Bolster, Fixed Armrests and Fore/Aft Adjustment

  • Molded Helm Seat Console with Drink Holders (2), Dedicated Tackle Storage with Removable Trays, Storage Drawers, 12V MDP and Folding Aft Facing Seat

  • Pursuit Cockpit JL Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium Speakers (5 Total, 2 in Hardtop, 2 in Bow, and Subwoofer) and Amplifier

  • Folding Transom Seat with Adjusting Backrest

  • Aft Cockpit Machinery Access Hatch

  • Forward Cockpit Machinery Access Hatch

  • Fresh Water Wash with Chrome over Brass Pull out Sprayer

  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose

  • LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit

  • Forward Facing Seat for two on Front of Console with Armrests

  • Molded Forward Bow Seating with Insulated Storage Below, Removable Cushions, Folding Forward Facing Backrests for Port and Starboard Seats

  • Bow Tonneau Cover, Sunbrella®

  • Helm Companion Seat Cover, Sunbrella®

  • Fire Extinguisher (Under Starboard Gunwale)

  • Drink Holders (2) 316L Stainless Steel

​

FISH FEATURES

  • Rod Holders (4), Stainless Steel, in Gunwale

  • Lighted Oceana Blue 24 Gallon Recirculating Livewell with Acrylic Lid

  • Under Gunwale Rod Storage with Reel Pads (Port and Starboard)

  • Fish Boxes (45 gallons), Insulated and Diaphragm Pumps with Overboard Discharge (Port and Starboard)

  • Vertical Rod Holders (4), Stainless Steel, in Transom

​

HARDTOP & WINDSHIELD

  • Molded Fiberglass Full Beam Hardtop

  • Custom Powder Coated Aft Structural Hardtop Supports

  • Custom Windshield System with Tempered Glass and Windshield Wiper

  • Custom Powder Coated Grab Rails on Windshield Frame (Port and Starboard)

  • Custom Stainless Steel Ratcheting LED Anchor/ Stern Light with Burgee Rings and USA Flag

  • Four (4) Tri Color LED Lights

  • Fore and Aft Facing Spreader Lights

  • Integrated Stereo Speakers (2)

  • Hardtop Acrylic Access/Ventilation Hatch

  • Fiberglass Hardtop with Dedicated Radar, Antenna, Outrigger and Spotlight Locations

HELM

  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fixed Fiberglass Footrest and Safety Lanyard

  • 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm

  • 12V Panel with Illuminated Carling® Rocker Switches

  • Single Windshield Wiper with Washer Control

  • Compass

  • Trim Tab Control Panel and Indicator

  • Waterproof Stereo Remote with Full Function Display

  • Integrated Glovebox with One 12V Outlet (1) and Dual USB Charger

  • 316L Stainless Steel Helm Drink Holders (2)

  • Fire Extinguisher (Under Port Gunwale)

  • Yamaha® Command Link Plus Display

  • Dash/Instrument Cover

​

ELECTRONICS

  • Garmin Package: Dual GPSMAP 8612 [1 XSV], Airmar B175M 20 Degree 1KW CHIRP Transducer, NMEA 2000 Starter kit, Pursuit Custom Dash Panel, Yamaha Gateway w/cable, VHF Antenna, Garmin® 315 VHF Radio

​

CONSOLE & HEAD

  • Two Piece Fiberglass Head Door with Gasket and 316L Stainless Steel Locking Latch

  • Molded Cabin Liner with Integrated Entry Steps

  • Electric Flush Marine Head with 9 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock

  • Fiberglass Toilet Seat Cover

  • Designer Sink with Corian® Countertop, Fresh Water Faucet and Vanity Mirror

  • Integrally Switched 12V Overhead Light

  • 316L Stainless Steel Opening Port Light (1) with Screen

  • Storage Hooks (3)

  • Fire Extinguisher

  • Toilet Tissue Holder

​

ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire

  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables

  • Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection

  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel

  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain

  • Three Battery System: Port Engine (1), Starboard Engine (1) and House (1)

  • One Grounding Bus Bar

  • Electronics Fuse Block

  • One 12V Outlet (1) and One Dual USB Charger (1)

​

MECHANICAL SPACE

  • Molded Interior White Gel Coat

  • Molded Hatch with Gasket and Stainless Steel Gas Spring

  • Molded Bilge Sump Area

  • One 1500 GPH Bilge Pump with Electronic Switch, One 1500 GPH Bilge Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings

  • Fresh Water Pump with Filter

  • Raw Water Pump with Sea Strainer, Bronze Seacock and Thru Hull Fitting

  • Dedicated Fish Box Diaphragm Evacuation Pumps

  • Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru-Hull Fitting

  • Teleflex Hydraulic Power Steering Pump

​

FUEL SYSTEM

  • EPA Compliant Lined Rotomolded 230 Gallon Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plate

  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings

  • Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs

​

WATER SYSTEM

  • 26 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate

  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends

  • Pressure Sensing/Variable Speed Pump

  • Centrally Located Freshwater Connections

  • Cockpit Shower

COLOR OPTIONS

Mix and match the right color combination for your new S 288

Screenshot 2023-11-19 at 8.26.06 p.m..png
OPTIONS

BOAT WITH ENGINES

Twin Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC), Multifunction Display Interface (Does Not Include Joystick Control)

​

Yamaha® Joystick Control with Full Maneuverability (Set PointTM and Autopilot) (Not Available with Bow Thruster)

​

COLOR SELECTIONS

Hull Color
- Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White

- Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue)

Underside Hardtop Color

- Carbon, Neptune Gray, Flag Blue, Gulf Stream Blue

Boot Stripe Color

- Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray

Helm color

- Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White

Upholstery Color
Sea Salt (Standard), White/Gray

​

MECHANICAL SYSTEMS

  • Bow Thruster - Requires Dockside Power (Not Available with Yamaha Joystick Control)

  • Dockside Power 110V/60Hz

  • Underwater Lights (3) All Color Quattro Spectrum

  • LLED Mid-level Accent Lights, LED Blue (4)

  • LED Spotlight with Remote Control at Helm

​

COMFORT & CONVENIENCE

  • Bow Sunpad with Dedicated Storage

  • Bow/Cockpit Table, Fiberglass with Dedicated Storage

  • Bow Tow Eye

  • Side Boarding Door Ladder, Stainless Steel

  • Ski Tow, Transom Mount, Pop-up

  • ​Stereo - Premium Upgrade: Custom Tuned JL Audio: w/6 Channel DSP Amp, 8" Subwoofer, 4 6.5" JL Audio Speakers, w/SiriusXM, and External Antenna, Includes 3 Months Subscription

WEATHER

  • Aft Cockpit Mediterranean Sunshade, Stowable

  • Bow Mediterranean Style Sunshade Stowable

  • Sunbrella® Canvas Color - Black, Tweed, Cadet Gray, or Navy

  • Side Curtains – Sunbrella®, 6 Piece w/60 mil Strataglass (Attaches to Side Gunwale)

  • Side Curtains Upgrade (White) (Attaches to Gunwale)

  • Aft Curtain - Sunbrella®

  • Aft Curtain - Stamoid® - White

  • Bow Tonneau Cover - Stamoid®

  • Engine Covers - Sunbrella® (2)

​

SPORT FISHING

  • Outriggers with 18' Premium Black Telescoping Poles and Rigging Kit

  • Outriggers - Upgrade to 20' Carbon Fiber Poles (Need to Order Outriggers)

  • Hardtop Mounted Rod Holders (6)

​

ELECTRONICS

  • Garmin® Radar GMR™ 24 xHD Dome
