PURSUIT

DC 266 Dual Console

Starting at $225,262.00 dlls

STANDARD SPECIFICATIONS:

• L.O.A.: 27' 4" (8.33 m)

• Beam: 8' 9" (2.67 m)

• Hull Draft

- Motors up:  1' 9" (0.53 m)
- Motors down: 2' 9" (0.84 m)

• Clearance w/Hardtop*
- From waterline: 7' 11" (2.41m)

• Approx. Dry Weight
-Twin F200 engines: 6,800 lbs. (3,084 kg)

• Fuel Capacity: 139 U.S. gallons (526 L)

• Fresh Water Capacity: 20 U.S. gallons (76 L)

• Livewell Capacity: 20 U.S. gallons (76 L)

• Fish Box Capacity: 31 U.S. gallons (117 L)

• Max. Horsepower: 400 hp (298 kw)

• Deadrise: 21°

Screenshot 2023-11-09 at 7.22.55 p.m..png

*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%.

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.

GALLERY
Ocean

PURSUIT DC 266

PURSUIT’S AWARD-WINNING DUAL CONSOLE BOAT LINE INCLUDES THE DC 266. ALL THE VERSATILITY AND INNOVATION OF THE DC 365 – IN A STYLE THAT IS UNMISTAKABLY PURSUIT.

Featuring a fiberglass hardtop, tempered glass windshield engineered with a vacuum infused fiberglass frame with roomy walkthrough and plenty of storage, the DC 266 dual console boat has an LOA of 27' and is powered by dependable twin Yamaha Outboards. The adjustable helm seat allows for excellent access to the instrumentation and controls as well as the optional Garmin electronics.

The exterior seating is complemented by the open bow design that has full wrap around seating with plenty of room for family and friends. Add the sunpad option and the social zone quickly converts to a private oasis. A head and sink allow for freshening up dockside.

Foldaway seating quickly transforms a social venue to a wide-open, fish-ready cockpit with 20 gallon livewell, gunwale mounted rod holders and transom fish-box.

Whether you’re looking for family time, cruising or casual fishing, the versatile DC 266 dual console boat is ideal for any experience on the water.

STANDARDS

HULL FEATURES

  • Pursuit® Protection Plan:
    5 Year Hull and Deck Structural Warranty
    5 Year Blister Free Warranty
    2 Year Limited Warrant

  • Pursuit Fresh White Gelcoat

  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics

  • 5 Ply Resin Infused Composite Transom System

  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System

  • Foam Filled Structural Grid

  • Integrated Transom Platform Extensions Outboard of Engines

  • Bronze Thru Hull Fittings Below Water Line

  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line

  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line

  • Bronze Garboard Drain

  • Trim Tabs, Lenco Electric with Auto-Retract

  • Bow Eye, 1/2" 316L Stainless Steel

  • Stern Eyes (2), 1/2" 316L Stainless Steel

  • Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform

  • Anchor System, Integrally Molded Thru-Stem

  • Horn, Electric, with Oval Stainless Steel Cover

  • Dedicated Transducer Location

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened

  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert

  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area

  • Flush Mounted Integral Anchor Locker (Self-Draining) with Fiberglass Lid Including: 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder, 14lb Galvanized Plow Style Anchor, 150' Rode (1/2" 8 Plait including 10' of ¼" G4 Chain)

  • Cleats, 316 Stainless Steel, 8" Pop Up (2) Stern, (2) Spring and (2) Bow

  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks

  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch

  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side

  • Bow Grab Rails, 316L Stainless Steel (Port and Starboard)

  • Transom Grab Rails, 316L Stainless Steel (Port and Starboard)

  • Navigation Lights, LED, 2 mile

COCKPIT FEATURES

  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing

  • Molded Forward Bow Seating with Flip-down Armrests and Storage Below

  • Port and Starboard Bow Coaming Boxes with USB Charging Ports

  • Flush-mounted, Single Piece, Acrylic Bow Access Door

  • Captain’s Chair with Foldable Armrests, Fore, Aft and Swivel Adjustments

  • Companion Seat with 316L Stainless Steel Grab Handle

  • Cockpit Tackle Center with three Removable Trays and two Sliding Drawers

  • Molded Entertainment Center with Sink, Faucet, Cutting Board, Dedicated Storage for 3.5 gallon Bucket and Hinged Fiberglass Lid and Door

  • Molded Aft Facing Cockpit Seat with Insulated Storage Below

  • Folding Transom Seat with Patented Adjusting Backrest and Folding Drink Holder

  • Folding Seat (Portside) Under Gunwale

  • Cockpit Mid-ship Floor Storage

  • Cockpit Machinery Access Hatch

  • Cockpit Transom Storage with Drain and Fiberglass Lid

  • Fresh Water Wash with Chrome over Brass Pull-out Sprayer

  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose

  • Drink Holders: 316L Stainless Steel, (2) Bow, (3) Companion and (2) in Gunwale; Acrylic, (2) Aft Facing Cockpit Seat and (1) Helm

  • LED Cockpit Accent Lights (5)

  • 12V Distribution Panel and Battery Switches

  • Cockpit Fire Extinguisher (Under Starboard Side Gunwale)

FISHING FEATURES

  • Rod Holders (4), Stainless Steel, in Gunwale

  • Lighted Oceana Blue 20 Gallon Recirculating Insulated Livewell with Plexiglas Lid

  • Under Gunwale Rod (2) Storage (starboard)

  • Fish Box/Storage, in-transom (31 gallon) Insulated Fiberglass with Drain

  • Tackle Drawer/Storage under Companion Seat

  • Aluminum Reinforcement Plates and Wiring for Downrigger Installation, Aft Gunwale (Port and Starboard)

HELM

  • Molded Fiberglass Helm with Instrumentation Visor, Electronics Mounting Surface and Safety Lanyard

  • 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm

  • 12V Panel with Illuminated Carling® Rocker Switches

  • Compass

  • Trim Tab Control Panel and Indicator

  • One (1) 12V Outlet and Dual USB Charger

  • Starboard Coaming Box Storage and Drink Holder

  • Helm Fire Extinguisher

  • Yamaha® 6YC Digital Engine Display

  • Yamaha® Electronic Twin Engine Binnacle Control

  • Key Switch Panel with Safety Lanyard

  • Push Button Start Panel

  • Standard Carbon Helm Color

CONSOLE (STARBOARD SIDE)

  • Molded Fiberglass Interior

  • Locking Closeout Door

  • Integrally Switched 12V Overhead Light

  • Dedicated Dock Line Storage

  • Dedicated Storage Space for Optional Bow Table

  • Dedicated Storage Space for Optional Bow Sun Pad

HEAD (PORT SIDE)

  • Two Piece Fiberglass Door, Integrated Storage/Visor, Grab Rail and 316L Stainless Steel Locking Latch

  • Molded Fiberglass Head Liner

  • Electric Marine Head with 13 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze through Hull Fitting with Seacock

  • Sink with Freshwater Faucet in Corian® Countertop

  • Vanity Mirror

  • Storage Below Sink

  • Integrally Switched 12V Overhead Light

  • Fire Extinguisher

  • Toilet Tissue Holder

HARDTOP & WINDSHIELD

  • Fiberglass Hardtop with Powder Coated Aluminum Structural Supports

  • Dedicated Locations for Optional VHF Antenna and Outriggers

  • Molded Fiberglass Windshield Frame with Tempered Glass Windshield and a Center Walk-through Door

  • Windshield Wiper (Starboard)

  • Two (2) Tri Color LED Lights

  • Integrated Fore and Aft Facing LED Spreader Lights

  • Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings and USA Flag



ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire

  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables

  • Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection

  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel

  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain

  • Two Battery System: Engines (1) and House (1)

  • One Grounding Bus Bar

  • Electronics Fuse Block

MECHANICAL SYSTEMS

  • Stainless Steel Anchor

  • Molded Interior White Gel Coat

  • Molded Access Hatch

  • Removable Fuel Tank Sending Unit Hatch

  • Molded Bilge Sump Area

  • Two (2) 1500 GPH Bilge Pumps with Electronic Switches and Stainless Steel Clad Thru Hull Fittings

  • 1100 GPH Tournament Series Livewell Pump, with Bronze Seacock and Thru Hull Fitting

  • Pressure Sensing Raw Water Pump with In-Line Filter



FUEL SYSTEMS

  • EPA Compliant Lined 139 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plate

  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings

  • Yamaha® Water Separating Fuel Filters with Primer Bulbs



WATER SYSTEMS

  • 20 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate

  • Premium Sea Tech Color Coded Water Hose System with Pressure Sensing Pump and Mechanically Crimped Ends

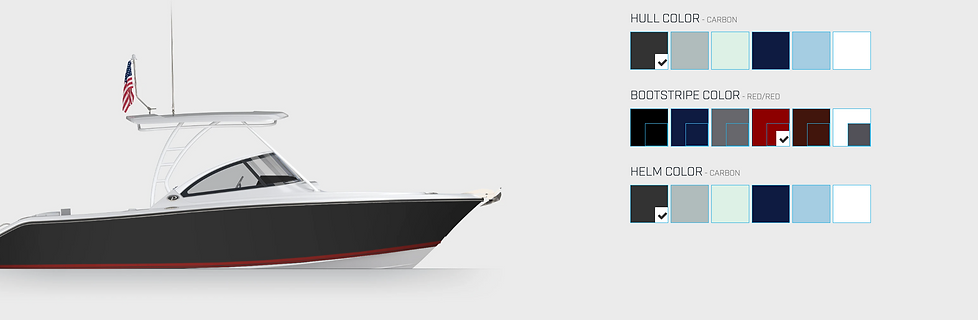

COLOR OPTIONS

Mix and match the right color combination for your new DC 266

Screenshot 2023-11-09 at 7.31.01 p.m..png
OPTIONS

BOAT WITH ENGINES

Twin Yamaha® Digital F200 (Pearlescent White) with Intergrated Digital Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control) CL 5 Display and Hydraulic Steering.

Yamaha Joystick Control with Full Maneuverability (Set Point and Autopilot).

COLOR SELECTIONS

Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue)

Hull Color
- Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White

Helm Color
- Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Arctic Blue, Fresh White.

Boot Stripe Color
- Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray.

Upholstery Color
- Sea Salt (Standard), White/Gray.

MECHANICAL SYSTEMS

  • Windlass Anchor System.

  • Underwater LED Lights (3) All Color Sea Blaze Quattro Spectrum.

  • Mid-Level Cockpit Accent Lights, LED Blue.

COMFORT & CONVENIENCE

  • Fiberglass Bow/Cockpit Table.

  • Bow Sunpad Filler with Cushion.

  • Ski Tow, Transom Mount, Removable.

  • Stereo, JL Audio System: MM105 AM/FM/USB Bluetooth Head Unit w/Amp, Subwoofer, 4 JL Audio Speakers, and External Antenna.

  • Stereo, JL Audio: Custom Tuned 6 Channel DSP Amp, Subwoofer, 4 Sport Speakers, and External Antenna, Sirius Receiver, Includes 3 Months Subscription.

WEATHER

  • Sunbrella® Canvas Color Black, Tweed, Cadet Gray or Navy.

  • Forward Cockpit Mediterranean Style Sunshade (Stowable).

  • Aft Cockpit Mediterranean Style Sunshade (Stowable).

  • 3 Piece Hardtop Connector with Strataglass 30mil - Sunbrella®.

  • 3 Piece Hardtop Connector Upgrade - Stamoid® (white).

  • 3 Piece Drop Curtain with Strataglass 30 mil - Sunbrella®.

  • 3 Piece Drop Curtain - Stamoid® (white).

  • Aft Curtain - Sunbrella®.

  • Aft Curtain - Stamoid® (White).

  • Instrument Cover - Sunbrella®.

  • Bow Tonneau Cover - Sunbrella®.

  • Bow Tonneau Cover - Stamoid® (White).

  • Engine Cover (2) - Sunbrella®.

SPORT FISHING

  • Hardtop Mounted Rod Holders (4)

ELECTRONICS

  • Garmin® Electronics Package: GPSMAP 8612XSV, Airmar B75M 20 Degree 600 Watt CHIRP Transducer, NMEA 2000 Starter kit, Pursuit Custom Dash Panel, VHF Antenna and Radio
